Application Principle of Self-Adhesive PDLC Film

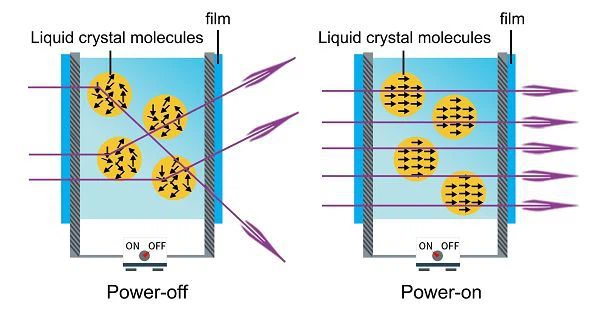

Principle: The self-adhesive smart film contains 4 layers: ITO conductive film-Liquid Crystal-ITO conductive film-Adhesive film. When the power is OFF, the liquid crystal molecules are irregular, which twist the incoming light and make the smart film “opaque”. When the power is ON, the LC molecules become regular, which allows the light going
Self-adhesive PDLC Film Schematic Diagram
Structure Diagram of Self-adhesive PDLC Film
Self-adhesive PDLC smart film is a product that is capable of adjusting light transmission between transparent and opaque by using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination. With continual improvement in moisture resistance, the new (3rd) generation of the film can be directly installed on existing windows with special glue or self-adhesive. It combines many functions, such as light adjustment, UV and infrared blocking, advertising and security.

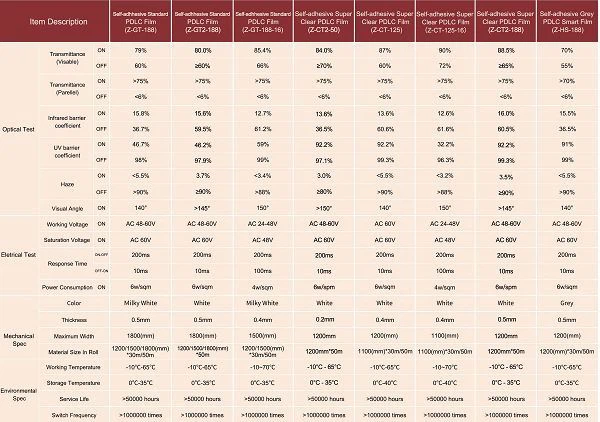

Technical Specifications of Self-adhesive PDLC Smart Film
Product Introduction
Three Major Features Of self-adhesive PDLC Film
1. Privacy Protection
• ON(transparent) state can visually extend the space and offer a better light condition, and OFF(opaque) state can provide a private space with a single switch. It can be used in office partition, bathing room, leisure club, private residence and other places to show its unique effect.
2. Less Power Consumption
• The self-adhesive smart film is also a good choice for heat insulation. It can become a significant part of the energy-saving system. Statistics show that, building energy consumption takes up as high as 25% of the world total energy consumption. 1°C lower indoor will cost 6% extra power. Our self-adhesive smart film can keep away certain percentage of UV and IR rays, which helps the user to maintain the building internal temperature and save energy.
3.Projection Screen

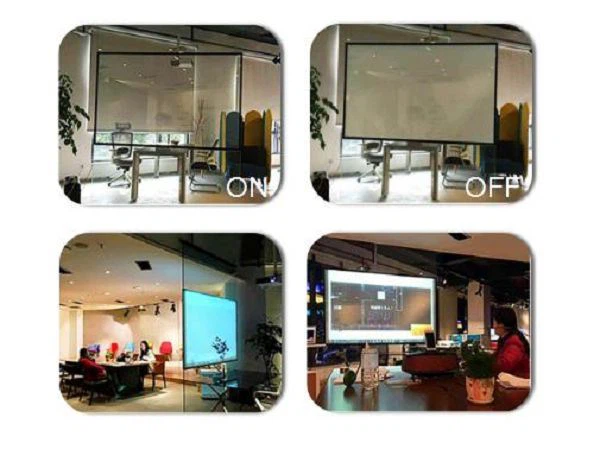

Rear projection on the self-adhesive film can generate clear images and videos. Together with IR technology, the user can build a touch screen system up to 150 inches. The self-adhesive film can be used as an E-curtain during the day, while it can be used as add screen at night.
Application

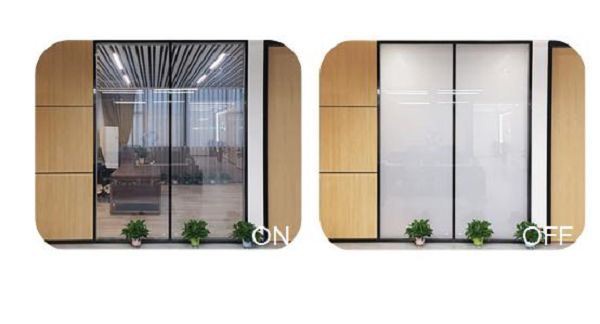

1.Multi-Purpose Use for Office
As a glass partition for offices and meeting rooms, you can see things outside when it is transparent. When opaque, it can be used as projection screen and whiteboard.

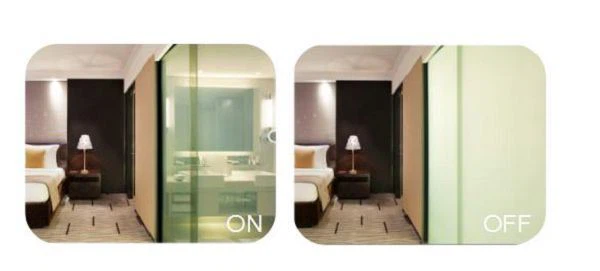

2.Interior Design for Residential
Glass curtains, living rooms, bathroom cubicles and other places can be used to highlight the owner's extraordinary taste. Usually the glass is in a opaque state, so that privacy is well protected. When used, the glass is transparent, so that the
owner can enjoy the comfort.
3.Commodity Display and Commercial Advertisement
When the display window is opaque, the product can not be seen by others, and the projector can also be used for advertising. When the window is transparent, the product is displayed, and the two states can be switched in an instant.
4.Use in special occasions
1) Use for glass partitions in bathrooms and toilets: when not in use, the glass is trans parent, and when in use, the door lock is locked as soon as it appears opaque.
2) Use for hidden space in hospital: using in hospital baby room, intensive care unit exploration window, etc., which can replace curtains, reduce dust mites and reduce noise.
3) Use for clean room: The clean room can use self-adhesive PDLC film to change the transparency and opacity, so that to reduce the inconvenience of wearing clean clothes into and out of the clean room.
 |  |  |
| Preparation Tools Before Installation | Unpack Before Installation. | Test Electrode Before Installation |
 |  |  |
| Clean The Glass Before Installation | Dry Glass Before Installation | Tear Off the Protective Layer |
 |  |  |
| Laminate the Film | Bubble Foreign Matter Solution | Edge Protection Film |
Installation Steps of Self-adhesive PDLC Film
①Preparation Tools Before Installation
1. Art Knife 2. Tape Measure 3. Anti-Leakage Tape 4. Foil Knife 5. Wire Stripper 6. Glass Scraper 7. Glass Cleaner
②Unpack Before Installation.
Unscrew our packaging with a utility knife tool,open the film and place it on the ground for 1 hour.
Unpack Before Installation
③Test Electrode Before Installation
Collision during transportation, check whether the electrode connection is normal.
Test Electrode Before Installation
④Clean The Glass Before Installation
Use glass cleaning fluid to spray the glass to get wet, and then start cleaning with a glass scraper tool.Note: There must be no foreign objects on the glass surface.
Clean The Glass Before Installation
⑤Dry Glass Before Installation
Use a newspaper or absorbent cloth to wipe off the water on the glass. The film should be applied dry, not wet.
Dry Glass Before Installation
⑥Tear Off the Protective Layer
Before starting the film, tear off the protective coating on the front of the film. It is best to have 3 people on the sceneto pick up and install. This film is not easy to stick.
Tear Off the Protective Layer
⑦Laminate the Film
After setting the position correctly, use the spatula tool to start filming.
Laminate the film
⑧Bubble Foreign Matter Solution
During the filming process, there are foreign objects on the glass surface, which causes blistering.Solution: Disassemble the utility knife, extract the blade, and remove the foreign objects on the glass surface.
Bubble Foreign Matter Solution
⑨Edge Protection Film
After affixing the film, start trimming with special glass glue for switchable glass to ensure that the film is not corroded by other substances.
Edge Protection Film

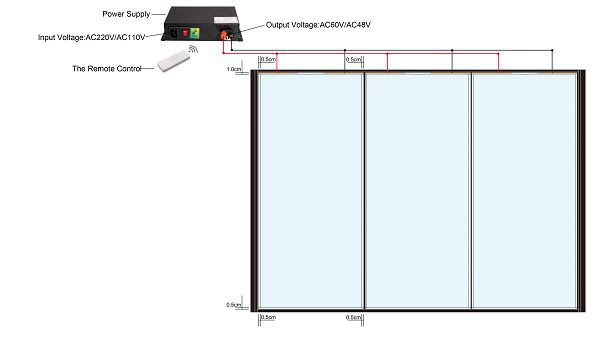

(1)Window Frame-Embedded Type
When designing and constructing, in order to be beautiful, choose to install the film into the
window frame, you should pay attention to the construction size.
Upper part of entering the frame: 1.0cm
Lower part of entering the frame:0.5cm
Left part of entering the frame:0.5cm
Right part of entering the frame:0.5cm

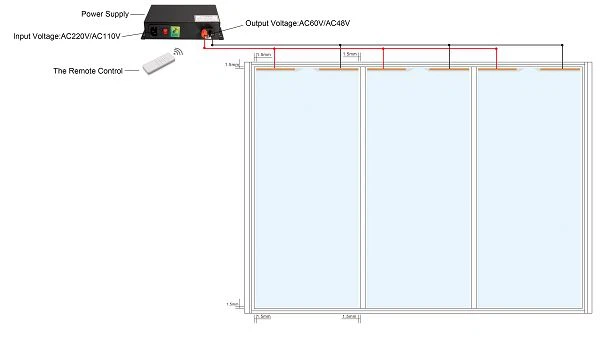

(2)Window Frame-Exposed Type
On the basis of the original glass, choose to install the film on the surface without
entering the window frame.
Upper part of distance the frame: 1.5mm
Lower part of distance the frame: 1.5mm
Left part of distance the frame: 1.5mm
Right part of distance the frame: 1.5mm
(3) Seamless-Splicing Type
When designing and constructing, in order to be beautiful,construction can be carried out by means of glass splicing glass.And considering that some glass has a chamfer, the gap between the glass and the glass should be no less than 3mm. Depending on the construction environment, it can consider to be embedded or exposed type.
Installed Door Seam Fittings
Conditions Not Recommended for Installation:
1.Working site is too dirty.
2.Unqualified Glass situation such as: outdoor, dirt, full of bumps and holes on the surface.
3.Other site problem such as: strong light,insufficient wiring system, shortage of matched equipment, and etc.
Suggestions:
1.Keep the light source at least 1 meter off the film;
2.Avoid direct light on the surface of the film;
3.Avoid strong light;
4.Keep the film off humid environment;
5.Avoid sharp objects;
6.Install a shelter on top of the film
The following situations should be considered as qualified products.
1.Flaws that within the range of acceptance.
2.Slight color difference between films applied in different areas;
3.Slight rainbow reflection
4.Slight wavy stitches
5.Altered haze level in different viewing angles (ON mode);
6.Different haze level for multiple films when the power is under control of dimming device.
7.Flicker and distortion will be seen when the film was projected by a DLP projector.
Notes For Sticking Film
1.The film is based on electrostatic adsorption, and it doesn’t need other adhesive materials for installation.
2.Do not fold or twist the film, which might lead to failure of installation.
3.Make sure the glass surface is clean before installation.
4.Keep away from the sharp objects that can scratch and damage the film.
5.Tiny bubbles does not affect the function of the film.
Maintenance & After-sales
1.Maintenance:Do not use liquid cleanser to clean the film, which is possible to cause short circuit. Dry fiber cloth is recommended.
2.The quality problem should be submitted within 15 days after receive the films. Please do not tear up the protection layer.
3.Responsibility:Our company will be responsible for all quality problems before installation. For problems arise after installation, customer should contact our after-sales department and provide required information. An assessment will be made before the final responsibility is concluded.
4. Warranty:1 year .
