Products Description
The remote control smart film is a laminated dimming film. This is the main form of the dimming film in use at present, and it is the most common dimming film on the market. The structure of the remote control smart film is the simplest. The smart dimming film and PVB or EVA are sandwiched between two pieces of glass, and then placed in an autoclave or a one-step furnace and glued through a process of high temperature and high pressure to form a dimming glass. As the most important form of dimming film, laminated dimming film accounts for about 90% of the entire dimming film application market. Since the laminated dimming film is sandwiched between glass and PVB film, and finally processed into dimming glass, the performance of the dimming film is relatively stable.
In order to meet the needs of different scenarios, we also provide you with different control methods, such as: remote control, wall switch, light sensor, voice control, touch control, mobile phone APP, etc. In addition, you can also choose an FM transformer to gradually control the dimming film.
Product Feature
1. Utilize the feature that the remote control smart film is white when it is not powered on, which can protect privacy. When not used as a screen, etc., the film becomes transparent when the electricity is turned on, so that the room can be seen through the glass.
2. The transmittance is higher in the power-on state, and the shielding effect is better in the power-off state. Drive voltage is lower and response time is faster, the switch control can be realized within one second.
3. The liquid crystal dimming film has the characteristics of being rollable and easy to transport. It is suitable for exhibitions and exhibition design. It can make full use of the effective display space and can also be used to decorate the window. After the smart dimming film is bent, the off-state shading effect will not change. Therefore, it can be bent when applied, and has a wider range of applications than similar products, and similar products become transparent after bending.

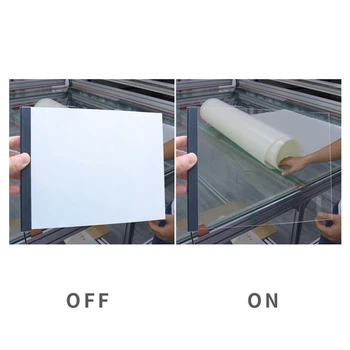

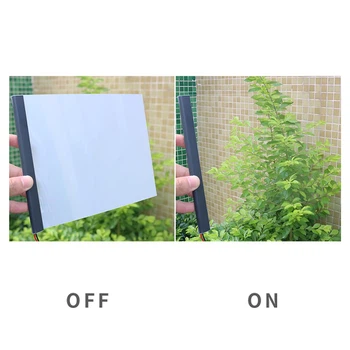

Product Effect Display
Product Description
Company Advantage
FAQ
Q: How about the package? Are they safe?
A: We use the hard wooden box made of several layers of wood .The box will be very strong and our loading worker has at least 10 years experience.
Q: What is the size of your Smart film in roll?
A: Width:1200mm, 1500mm, 1800mm,and can be customized.
Length:50 meters
Q: What is the expected life of your products?
A: Life time is more than 10 years or switch >2000000 times.
Q: Can I choose my favorite style for the remote control?
A: The basic remote control (model: YK06) will be given as a gift when you place an order for the power supply on this link. If you need other remote controls, you can also contact us for purchase.
Q: Why are the power supply prices different?
A: Due to the different parameters of the transformer, the cost and price will also be different. Please rest assured that we will only quote you the price according to the actual cost calculation.
Package
Certification
Hot Tags: remote control smart film, China remote control smart film manufacturers, suppliers, factory
|
Item Description |
CT-125 |
CT2-188 |
QH-188 |
||
|
Optical Test |
Transmittance (Visible) |
ON |
89.5% |
87.5% |
72.0% |
|
OFF |
≥60% |
≥60% |
≥50% |
||
|
Haze |
ON |
3.5% |
3.5% |
5.3% |
|
|
OFF |
98.0% |
97.0% |
98.0% |
||
|
Visual Angle |
ON |
＞145° |
＞145° |
＞145° |
|
|
Infrared blocking coefficient |
ON |
13.6% |
15.6% |
15.5% |
|
|
OFF |
60.6% |
59.5% |
36.0% |
||
|
UV barrier coefficient |
ON |
47.1% |
46.2% |
48.5% |
|
|
OFF |
99.3% |
97.9% |
97.1% |
||
|
Electrical Test |
Working Voltage |
ON |
AC 60V |
AC 48-60V |
AC 48-60V |
|
Saturation Voltage |
ON |
AC 60V |
AC 60V |
AC 60V |
|
|
Response Time |
ON-OFF |
200ms |
200ms |
200ms |
|
|
OFF-ON |
10ms |
10ms |
10ms |
||
|
Power Consumption |
ON |
6w/sqm |
6w/sqm |
6w/sqm |
|
|
Mechanical Spec. |
Color |
White |
Milky white |
Grey |
|
|
Thickness |
0.27mm |
0.4mm |
0.4mm |
||
|
Maximum Width |
1200mm |
1200mm |
1500mm |
||
|
Width/mm |
1200mm |
1200mm |
1200、1500mm |
||
|
length |
30M |
50M |
50M |
||
|
Environmental spec. |
Working Temperature |
-10°C - 65°C |
-10°C - 65°C |
-10°C - 65°C |
|
|
Storage Temperature |
0°C - 35°C |
0°C - 35°C |
0°C - 35°C |
||
|
Service Life |
>50000 hours |
>50000 hours |
>50000 hours |
||
|
Switch Life |
> 1000000 times |
> 1000000 times |
> 1000000 times |
||
